ClearBOX 551C

ClearBOX 551C delivers critical Smart Server Technology at a never before seen cluster price. These single or dual processor, mid to enterprise level models are designed to scale and deliver a wide variety of IT functions for small environments. Designed as an easy to deploy all-in-on solution, this 1u server cluster provides more than 75+ IT Functions, deployed seamlessly through Marketplace.

Summary:

  • Includes: 3 x ClearBOX 551 Hybrid Smart Servers
  • Includes: 3 x ClearOS 7, Business Platinum Subscriptions (5/yr)
  • Includes: ClearBOX 024P Switch and Power Distribution Unit
  • All-in-One Cluster for Server, Network, & Gateway Security for up to 750 users
  • Intended for Small, Medium & Distributed Office Environments
  • Ships with ClearVM, ClearOS 7, Business Edition, or both pre-installed

    ClearBOX 551C | Overview

    ClearBOX 551C delivers a never before seen turn-key experience, enabling one server to perform 75+ IT functions.

    These servers are built to run (and arrive pre-installed and pre-tested with) ClearOS 7, Business Edition. ClearBOX is managed from any browser from the cloud-managed Webconfig console. No longer are servers managed via text files and command lines.

    • Arrives Turn-Key, Ready To Configure
    • Enterprise Functionality. Small Business Price.
    • Local Storage: models available up to 24TB
    • Memory: models available up to 1024GB
    • Dual Processors, Intel Xeon E5 v3 Technology
    • SATA, SSD, or SAS Drive Configurations
    • Up to 2 ISP Connections
    • Intended for Small to Medium Environments
    • All-in-One Server (up to 750 users)*
    • Mail Server (up to 1000 users)*
    • Application Server (up to 10,000 users)*
    • Internet Security Appliance (up to 10,000 users)*
    • Content Filter & Proxy Server (up to 10,000 users)*
    • Network File Server (up to 20,000 users)*
    • Pre-Installed & Tested with ClearOS 7, Business Edition
    • Includes: 3/yr ClearOS Business Silver Subscription (self-support)
    • Includes: 3/yr ClearVM Private Cloud Management
    • Includes: 3/yr ClearBOX Hardware Warranty
    • Includes: 75+ IT Functions
    • Includes: 3rd Party & Business Exclusive Apps

    ClearBOX 551C | Features

    Cloud Apps

    • Dropbox®
    • Google Drive® Sync (coming)
    • Microsoft Office365® Connector (coming)
    • Dynamic DNS
    • Dynamic VPN
    • Remote Security Audit
    • Remote Data Backup
    • Remote System Monitor
    • Google Apps®, Accounts Sync
    • Antimalware Signatures
    • Antispam Signatures
    • Content Filter Blacklists
    • IDS Signatures

    Network Apps

    • Bandwidth &amp QoS Manager
    • 1-to-1 NAT Firewall
    • Custom Firewall
    • DMZ Firewall
    • Egress Firewall
    • Incoming Firewall
    • Port Forwarding
    • Network Map
    • DHCP Server
    • DNS Server
    • Multicast DNS Server
    • NTP Server
    • RADIUS Server
    • SSH Server
    • UPnP
    • OpenVPN
    • ibVPN
    • PPTP Server
    • IPsec VPN
    • IP Settings
    • Multi-WAN
    • Upstream Proxy

    Gateway Apps

    • Gateway Antiphising
    • Gateway Antivirus
    • Kaspersky® Antimalware
    • Content Filter Engine
    • DNSThingy
    • Web Access Control
    • Web Proxy Server
    • Web Proxy Auto Detection
    • Intrusion Detection System
    • Intrusion Prevention System

    Server Apps

    • MariaDB Database Server
    • Directory Server
    • Microsoft Active Directory® Connector
    • Google Apps® Connector (coming)
    • Antimalware File Scanner
    • FTP Server
    • Flexshare
    • ownCloud
    • Photo Organizer
    • Plex Media Server
    • Serviio Media Server
    • Windows Networking (Samba)
    • Advanced Print Server
    • Greylisting
    • IMAP &amp POP Server
    • Mail Antispam
    • Mail Antivirus
    • Mail Archive
    • Mail Retrieval
    • Kaspersky® Mail Antimlware
    • Roundcube Webmail
    • SMTP Server
    • Zarafa® Collaboration (exchange)
    • Web Server

    System Apps

    • Master / Slave Synchronization
    • Administrators
    • Groups
    • Account Manager
    • Account Import
    • Password Policies
    • Users
    • User Certificates
    • User Profiles
    • Software RAID Manager
    • Storage Manager

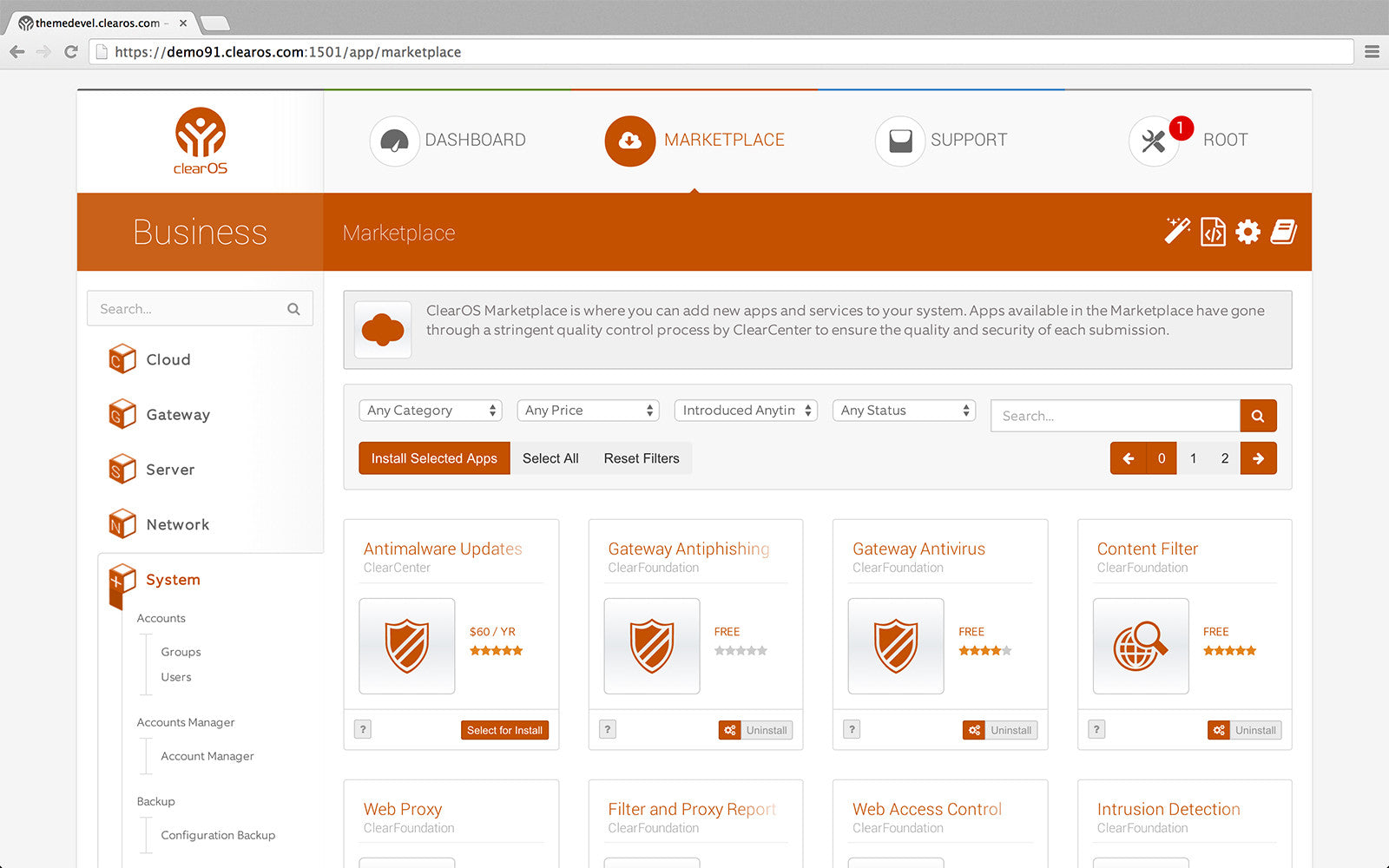

    • ClearOS Business Marketplace
    • ClearCARE Support

    Reporting Apps

    • Bandwidth Viewer Report
    • Disk Usage Report
    • Log Viewer
    • Network Report
    • Network Visualizer
    • Process Viewer
    • Resource Report
    • SMART Monitor
    • Events &amp Notifications System (coming)
    • System Report
    • IDS Report (coming)
    • IDS Viewer (coming)
    • Content Filter Block Report (coming)
    • Antimalware Threat Report (coming)
    • SSH Access Log Report (coming)
    • Remote Audit Log Report (coming)
    • Penetration Testing Report (coming)


    ClearBOX 551C | Subscriptions

    DID YOU KNOW: Deploying ClearOS 7, Business Edition saves you hundreds or even thousands of dollars a year. The Business Edition bundles in many available paid apps and services, along with commercial third party add-ons which are more costly as al a carte options on other ClearOS editions.Check out the benefits of using ClearOS 7, Business below:



    N/A
    Not Available on ClearBOX

    BRONZE
    Business Subscription

    • Includes 75+ IT Functions (apps)
    • ClearOS 7, Business OS & App Access
    • Quality Tested Code & Updates Only
    • Master / Slave Directory Synchronization
    • Microsoft® A.D. Connector (up to 50 users)
    Optional
    Contact a Partner to Downgrade

    SILVER
    Business Subscription

    • BRONZE Subscription (plus the following)
    • + Commercial URLs for Content Filter
    • + Content Filter Blacklisting
    • + Commercial Signatures for IDS / IPS
    • + Commercial AV / AS Rules
    • + Remote System Configuration Backup
    • + Dynamically Managed VPN
    Optional
    Contact a Partner to Downgrade

    GOLD
    Business Subscription

    • SILVER Subscription (plus the following)
    • + ClearCARE Level I (Break/Fix Support)
    • + 8/5 Tech-Support (M-F 10-18:00 EST)
    • + Unlmited Tickets (Incl. 5 Hour Support Pack)
    • + Email Support
    • + Remote Login Support
    • + 1 Business Day Initial Support Response
    Included
    for 60 Months

    PLATINUM
    Business Subscription

    • GOLD Subscription (plus the following)
    • + ClearCARE Level II (Troubleshooting Support)
    • + 8/5 Tech-Support (24/7 *outages only)
    • + Unlmited Tickets (Incl. 10 Hour Support Pack)
    • + Phone Support
    • + 4 Hour Initial Support Response
    • + Remote System Monitor Alerts
    • + Remote File Security Audit Alerts

    ClearBOX 551C | Specifications

    Form Factor

    1u rack server

    Number of Processors
    Processor Models

    Intel Xeon E5-2600 v3 series processors:

    • Intel® Xeon E5-2620 v3 2.40GHz 6c
    • Intel® Xeon E5-2630 v3 1.80GHz 8c
    • Intel® Xeon E5-2670 v3 2.30GHz 12c
    • Intel® Xeon E5-2698 v3 2.30GHz 16c*
    Memory

    16 slots for DDR4 RDIMMs or LRDIMMs:

    • 16GB (DDR4 RDIMM 2133MHz 1.2v 2Rank)*
    • 32GB (DDR4 RDIMM 2133MHz 1.2v 2Rank)
    • 64GB (DDR4 RDIMM 2133MHz 1.2v 2Rank)
    • 128GB (DDR4 RDIMM 2133MHz 1.2v 2Rank)
    • 256GB (DDR4 RDIMM 2133MHz 1.2v 2Rank)*
    • 512GB (DDR4 RDIMM 2133MHz 1.2v 2Rank)*
    • 768GB (DDR4 RDIMM 2133MHz 1.2v 2Rank)*
    • 1024GB (DDR4 RDIMM 2133MHz 1.2v 2Rank)*

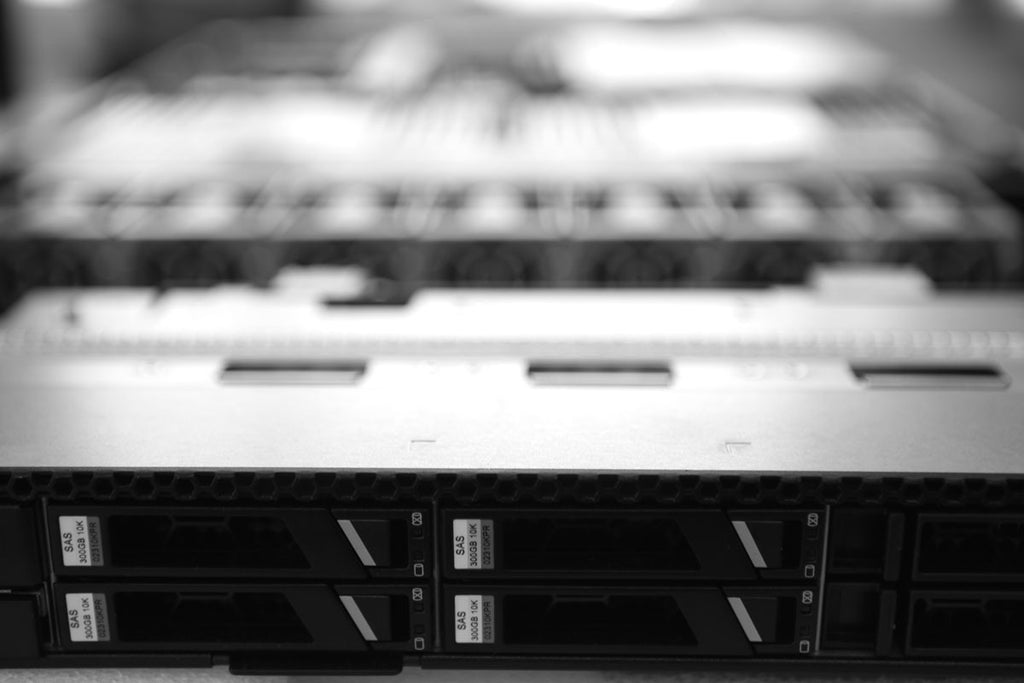

    Local Storage

    Supports 2.5" SSD, SATA or SAS Hard Disk Configurations:

    • 3 x 480GB SATA Solid State Disk (RAID 0/1/5)
    • 3 x 960GB SATA Solid State Disk (RAID 0/1/5)
    • 5 x 480GB SATA Solid State Disk (RAID 0/1/5/6/10)
    • 5 x 960GB SATA Solid State Disk (RAID 0/1/5/6/10)
    • 8 x 480GB SATA Solid State Disk (RAID 0/1/5/6/10/50)
    • 8 x 960GB SATA Solid State Disk (RAID 0/1/5/6/10/50)
    • 300GB SAS Hard Drive*
    • 900GB SAS Hard Drive*
    • 1.8TB SAS Hard Drive*
    RAID

    Supports RAID 0, 1, 10, 5, 50, 6, and 60

    Users a supercapacitor to protect RAID cache data from power failures.*

    Supports RAID state migration, RAID configuration memory, self-diagnosis, and remote web setting

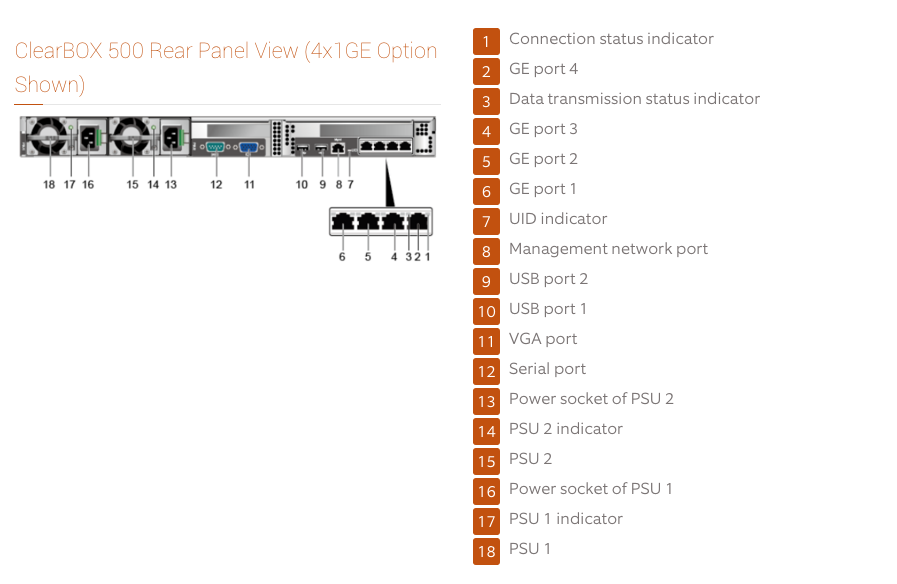

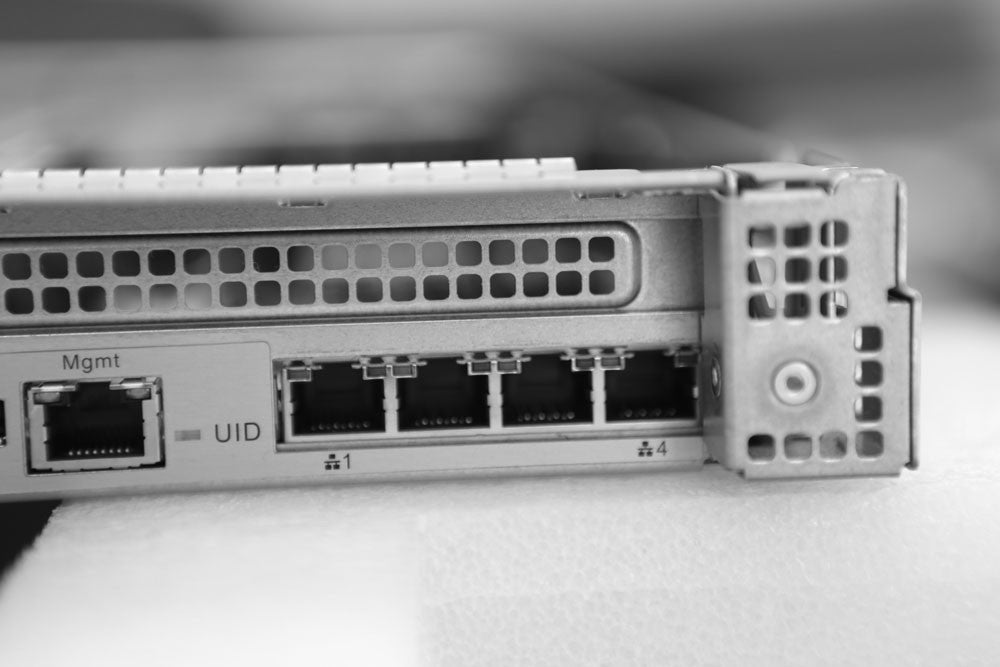

    Network Ports Four GbE ports (10GbE optional upon request)

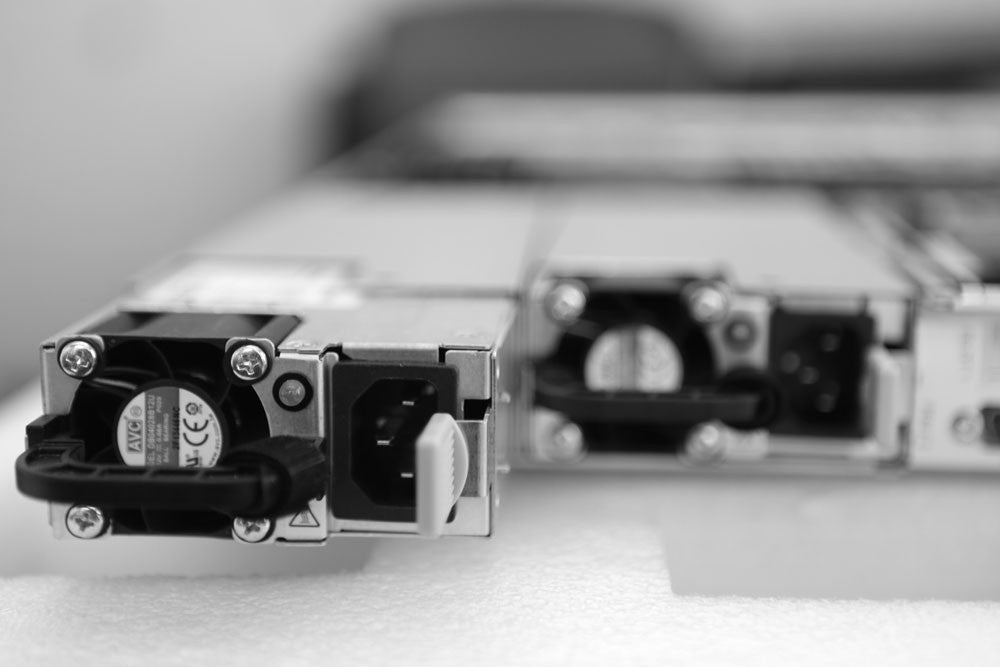

    Power Supply

    2 x 460w Gold Power Supply

    • 110 V to 220 V AC
    • 240 V to 380 V DC
    • -48 V DC
    • 5°C to 45°C (41°F to 113°F)
    Note: The ClearBOX 500 servers operating at 40°C do not support SSDs, and the fault of one fan may affect CPU performance

    Dimensions (W x D x H) 447 mm x 710 mm x 43.6 mm (17.60 in x 27.95 in x 1.72 in)
    In the Box
    • 1u Rail Kit
    • Nema 5-15 (North America) Power Cable
    • Quick Start Guide
    • USB Software Key

     * Not offered in pre-configured models. Contact our team or a local partner to customize your smart server.

    ClearBOX 551C | Compare

    Comparison
    ClearBOX Series
    Intended Environment
    • Home Office
    • Small Office
    • Medium Office
    • Large Office
    • Distributed Environments
    • Data Center
    Intended IT Functions
    • Mail Server
    • Application Server
    • Internet Security Appliance
    • Content Filter &amp Proxy Server
    • Network File Server
    • All-in-One Server
    Intended User Load
    • Zarafa Mail Server
    • IMAP &amp POP Server
    • Application Server2
    • Internet Security Appliance
    • Content Filter &amp Proxy Server
    • Network File Server
    • All-in-One Server
    Hardware Specifications
    • CPU
    • Memory
    • Disk
    • Power
    • Rack Mountable
    0
    100
    • Up to 25
    • Up to 50
    • Up to 25
    • Up to 50
    • Up to 50
    • Up to 100
    • Up to 15
    • 1x Intel Atom®
    • Up to 4GB
    • 1x 2.5" SATA
    • 1x P/S
    • -
    0
    300
    • Up to 100
    • Up to 350
    • Up to 50
    • Up to 200
    • Up to 200
    • Up to 400
    • Up to 75
    • 1x Intel iSeries®
    • Up to 16GB
    • 2x 2.5" or 1x 3.5" SATA
    • 1x P/S
    • Yes
    0
    500
    • Up to 10001
    • Up to 1000
    • Up to 10000
    • Up to 100001
    • Up to 100001
    • Up to 200001
    • Up to 750
    • 2x Intel Xeon®
    • Up to 1024GB
    • 8x 2.5" or 4x 3.5" SAS
    • 2x Hot Swappable P/S
    • Yes
    0
    700
    • Up to 10001
    • Up to 3500
    • Up to 10000
    • Up to 100001
    • Up to 100001
    • Up to 200001
    • Up to 750
    • 2x Intel Xeon®
    • Up to 1024GB
    • 25x 2.5" or 12x 3.5" SAS
    • 2x Hot Swappable P/S
    • Yes

    ClearBOX 551C | Documentation

    User Guide Coming
    Quick Start Guide Coming
    Datasheet Coming
