ClearBOX 751C | Overview
ClearBOX 751C delivers a never before seen turn-key experience, enabling one server to perform 75+ IT functions.
These servers are built to run (and arrive pre-installed and pre-tested with) ClearOS 7, Business Edition. ClearBOX is managed from any browser from the cloud-managed Webconfig console. No longer are servers managed via text files and command lines.
- Arrives Turn-Key, Ready To Configure
- Enterprise Functionality. Small Business Price.
- Local Storage: models pre-configured up to 72TB
- Memory: models pre-configured up to 1024GB
- Single or Dual Processor, Intel Xeon E5 v3 Technology
- SATA & SAS Drive Configurations
- Up to 2 ISP Connections
- Intended for Small to Medium Environments
- All-in-One Server (up to 750 users)*
- Mail Server (up to 1000 users)*
- Application Server (up to 10,000 users)*
- Internet Security Appliance (up to 10,000 users)*
- Content Filter & Proxy Server (up to 10,000 users)*
- Network File Server (up to 20,000 users)*
- Pre-Installed & Tested with ClearVM, ClearOS 7, Business Edition or both.
- Includes: 3/yr ClearOS Business Silver Subscription (self-support)
- Includes: 3/yr ClearVM Private Cloud Management
- Includes: 3/yr ClearBOX Hardware Warranty
- Includes: 75+ IT Functions
- Includes: 3rd Party & Business Exclusive Apps
ClearBOX 751C | Features
Cloud Apps
- Dropbox®
- Google Drive® Sync (coming)
- Microsoft Office365® Connector (coming)
- Dynamic DNS
- Dynamic VPN
- Remote Security Audit
- Remote Data Backup
- Remote System Monitor
- Google Apps®, Accounts Sync
- Antimalware Signatures
- Antispam Signatures
- Content Filter Blacklists
- IDS Signatures
Network Apps
- Bandwidth & QoS Manager
- 1-to-1 NAT Firewall
- Custom Firewall
- DMZ Firewall
- Egress Firewall
- Incoming Firewall
- Port Forwarding
- Network Map
- DHCP Server
- DNS Server
- Multicast DNS Server
- NTP Server
- RADIUS Server
- SSH Server
- UPnP
- OpenVPN
- ibVPN
- PPTP Server
- IPsec VPN
- IP Settings
- Multi-WAN
- Upstream Proxy
Gateway Apps
- Gateway Antiphising
- Gateway Antivirus
- Kaspersky® Antimalware
- Content Filter Engine
- DNSThingy
- Web Access Control
- Web Proxy Server
- Web Proxy Auto Detection
- Intrusion Detection System
- Intrusion Prevention System
Server Apps
- MariaDB Database Server
- Directory Server
- Microsoft Active Directory® Connector
- Google Apps® Connector (coming)
- Antimalware File Scanner
- FTP Server
- Flexshare
- ownCloud
- Photo Organizer
- Plex Media Server
- Serviio Media Server
- Windows Networking (Samba)
- Advanced Print Server
- Greylisting
- IMAP & POP Server
- Mail Antispam
- Mail Antivirus
- Mail Archive
- Mail Retrieval
- Kaspersky® Mail Antimlware
- Roundcube Webmail
- SMTP Server
- Zarafa® Collaboration (exchange)
- Web Server
System Apps
- Master / Slave Synchronization
- Administrators
- Groups
- Account Manager
- Account Import
- Password Policies
- Users
- User Certificates
- User Profiles
- Software RAID Manager
- Storage Manager
- ClearOS Business Marketplace
- ClearCARE Support
Reporting Apps
- Bandwidth Viewer Report
- Disk Usage Report
- Log Viewer
- Network Report
- Network Visualizer
- Process Viewer
- Resource Report
- SMART Monitor
- Events & Notifications System (coming)
- System Report
- IDS Report (coming)
- IDS Viewer (coming)
- Content Filter Block Report (coming)
- Antimalware Threat Report (coming)
- SSH Access Log Report (coming)
- Remote Audit Log Report (coming)
- Penetration Testing Report (coming)
ClearBOX 751C | Subscriptions
DID YOU KNOW: Deploying ClearOS 7, Business Edition saves you hundreds or even thousands of dollars a year. The Business Edition bundles in many available paid apps and services, along with commercial third party add-ons which are more costly as al a carte options on other ClearOS editions.Check out the benefits of using ClearOS 7, Business below:
N/A
Not Available on ClearBOX
BRONZE
Business Subscription
- Includes 75+ IT Functions (apps)
- ClearOS 7, Business OS & App Access
- Quality Tested Code & Updates Only
- Master / Slave Directory Synchronization
- Microsoft® A.D. Connector (up to 50 users)
Optional
Contact Sales to Downgrade
SILVER
Business Subscription
- BRONZE Subscription (plus the following)
- + Commercial URLs for Content Filter
- + Content Filter Blacklisting
- + Commercial Signatures for IDS / IPS
- + Commercial AV / AS Rules
- + Remote System Configuration Backup
- + Dynamically Managed VPN
Optional
Contact Sales to Downgrade
GOLD
Business Subscription
- SILVER Subscription (plus the following)
- + ClearCARE Level I (Break/Fix Support)
- + 8/5 Tech-Support (M-F 10-18:00 EST)
- + Unlmited Tickets (Incl. 5 Hour Support Pack)
- + Email Support
- + Remote Login Support
- + 1 Business Day Initial Support Response
Included
For 36 / Months
PLATINUM
Business Subscription
- GOLD Subscription (plus the following)
- + ClearCARE Level II (Troubleshooting Support)
- + 8/5 Tech-Support (24/7 *outages only)
- + Unlmited Tickets (Incl. 10 Hour Support Pack)
- + Phone Support
- + 4 Hour Initial Support Response
- + Remote System Monitor Alerts
- + Remote File Security Audit Alerts
ClearBOX 751C | Specifications
Form Factor |
2u rack server
|
Number of Processors |
1 or 2 |
Processor Models |
Intel Xeon E5-2600 v3 series processors:
- Intel® Xeon E5-2620 v3 2.40GHz 6c
- Intel® Xeon E5-2630 v3 1.80GHz 8c
- Intel® Xeon E5-2670 v3 2.30GHz 12c
- Intel® Xeon E5-2698 v3 2.30GHz 16c
|
Memory |
16 slots for DDR4 RDIMMs or LRDIMMs:
- 16GB (DDR4 RDIMM 2133MHz 1.2v 2Rank)
- 32GB (DDR4 RDIMM 2133MHz 1.2v 2Rank)
- 64GB (DDR4 RDIMM 2133MHz 1.2v 2Rank)
- 128GB (DDR4 RDIMM 2133MHz 1.2v 2Rank)
- 256GB (DDR4 RDIMM 2133MHz 1.2v 2Rank)
- 512GB (DDR4 RDIMM 2133MHz 1.2v 2Rank)
- 768GB (DDR4 RDIMM 2133MHz 1.2v 2Rank)
- 1024GB (DDR4 RDIMM 2133MHz 1.2v 2Rank)
|
Local Storage |
FRONT: Supports 2.5" or 3.5" SSD, SATA or SAS Hard Disk Configurations:
- 900GB SAS Hard Disk (RAID 0/1/5/6/10/50)
- 1800GB SATA Hard Disk (RAID 0/1/5/6/10/50)
- 240GB Solid State Disk ((RAID 0/1/5/6/10/50)
- 480GB Solid State Disk ((RAID 0/1/5/6/10/50)
- 960GB Solid State Disk ((RAID 0/1/5/6/10/50)
- 2000GB SATA Hard Disk (RAID 0/1/5/6/10/50)
- 3000GB SATA Hard Disk (RAID 0/1/5/6/10/50)
- 4000GB SATA Hard Disk (RAID 0/1/5/6/10/50)
- 6000GB SATA Hard Disk (RAID 0/1/5/6/10/50)
- 2000GB SAS Hard Disk (RAID 0/1/5/6/10/50)
- 3000GB SAS Hard Disk (RAID 0/1/5/6/10/50)
- 4000GB SAS Hard Disk (RAID 0/1/5/6/10/50)

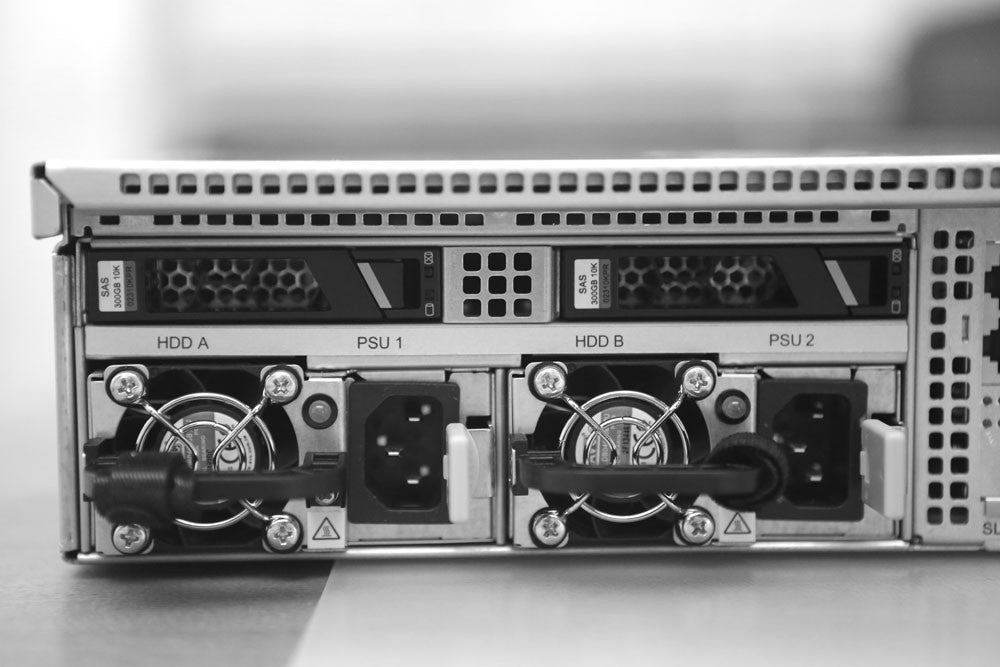

REAR: Suports 2.5" SSD, SATA or SAS Hard Disk Configurations:
- 2 x 240GB Solid State Disk
|
RAID |
Supports RAID 0, 1, 10, 5, 50, 6, and 60
Users a supercapacitor to protect RAID cache data from power failures.
Supports RAID state migration, RAID configuration memory, self-diagnosis, and remote web setting
|
Network Ports |
Four GbE ports (10GbE optional upon request) |
Power Supply |
1 or 2: 750w Platinum Power Supply
- 110 V to 220 V AC
- 240 V to 380 V DC
- -48 V DC
- 5°C to 45°C (41°F to 113°F)
Note: The ClearBOX 700 servers operating at 40°C do not support SSDs, and the fault of one fan may affect CPU performance
|
Dimensions (W x D x H) |
447 mm x 748 mm x 86.1 mm (17.60 in x 29.45 in x 3.39 in) |
In the Box |
- 2u Rail Kit
- Nema 5-15 (North America) Power Cable
- Quick Start Guide
- USB Software Key
|
ClearBOX 751C | Compare
Comparison
ClearBOX Series
Intended Environment
- Home Office
- Small Office
- Medium Office
- Large Office
- Distributed Environments
- Data Center
Intended IT Functions
- Mail Server
- Application Server
- Internet Security Appliance
- Content Filter & Proxy Server
- Network File Server
- All-in-One Server
Intended User Load
- Zarafa Mail Server
- IMAP & POP Server
- Application Server2
- Internet Security Appliance
- Content Filter & Proxy Server
- Network File Server
- All-in-One Server
Hardware Specifications
- CPU
- Memory
- Disk
- Power
- Rack Mountable
100
- Up to 25
- Up to 50
- Up to 25
- Up to 50
- Up to 50
- Up to 100
- Up to 15
- 1x Intel Atom®
- Up to 4GB
- 1x 2.5" SATA
- 1x P/S
- -
300
- Up to 100
- Up to 350
- Up to 50
- Up to 200
- Up to 200
- Up to 400
- Up to 75
- 1x Intel iSeries®
- Up to 16GB
- 2x 2.5" or 1x 3.5" SATA
- 1x P/S
- Yes
500
- Up to 10001
- Up to 1000
- Up to 10000
- Up to 100001
- Up to 100001
- Up to 200001
- Up to 750
- 2x Intel Xeon®
- Up to 1024GB
- 8x 2.5" or 4x 3.5" SAS
- 2x Hot Swappable P/S
- Yes
700
- Up to 10001
- Up to 3500
- Up to 10000
- Up to 100001
- Up to 100001
- Up to 200001
- Up to 750
- 2x Intel Xeon®
- Up to 1024GB
- 25x 2.5" or 12x 3.5" SAS
- 2x Hot Swappable P/S
- Yes
ClearBOX 751C | Documentation
User Guide |
Coming |
Quick Start Guide |
Coming |
Datasheet |
Coming |
